Our new and improved NTC01 temperature sensor (CC22902) for liquidsthe ideal solution for monitoring engine oil, water, transmission oil, and differential temperatures. We’ve made the connection process as simple as possible, so you can work faster and more efficiently.
What’s New?
Our temperature sensor already comes with an integrated 1K-ohm pull-up resistor and is supplied with a DTM connector. This means you only need to provide it with 5V, ground, and a signal line.
For MFD15/MFD28/MFD32 Gen2 devices, the TRI/TRX file is preconfigured so that when you connect the signal line directly to analog input 1, the values are displayed Plug and Play.
Of course, you can also connect the sensor to other analog inputs or components. Simply input the following characteristic curve, and you’re good to go.
The sensor has a 1/8″ NPT thread (also fits M10x1) and should be tightened with a torque of 10 Nm.

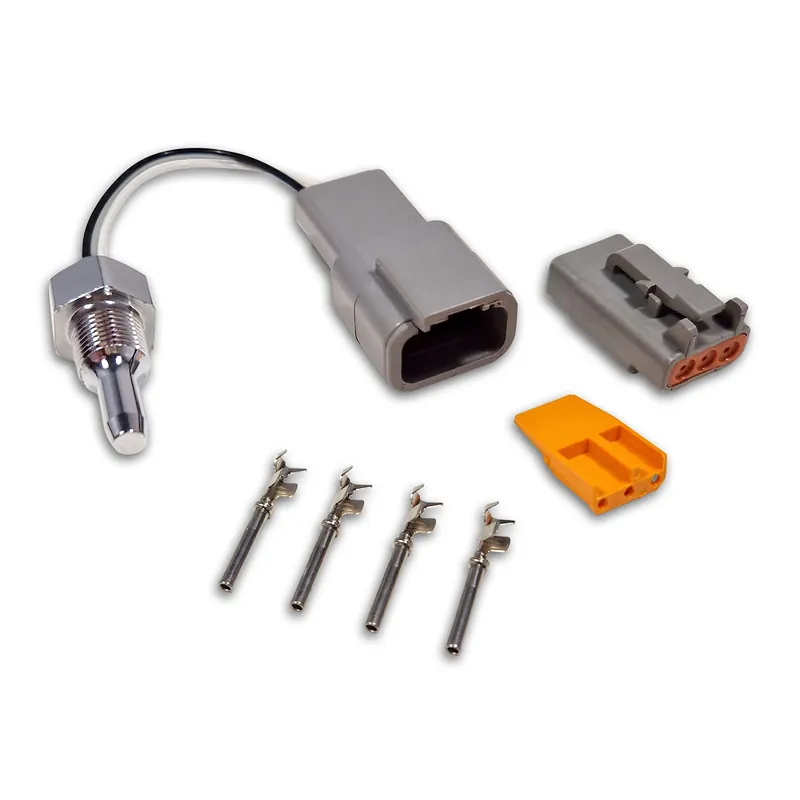

What’s Included:
- The sensor with female connector and integrated resistor
- The matching counter connector (DTM04-3P)
- 3 DTM pins for easy connection (for self-crimping)
- A Wedgelock (WM-3P) to securely and stably hold everything in place
